SHACKLES B.C

Payment

T/T
MOQ

Negotiable
Country of sale

World Wide
PRICE
- FOB

  Depend on quantity

Description
Shipping&Payments
Company Introduction
POC SUGGESTIONS
(PROOF OF CONCEPT)
Product Reviews

ITEM SPECIFICS

Brand

Unbranded

Model SJ-201-A
origin

Republic of Korea
Size(Capacity)

PRODUCT DESCRIPTION

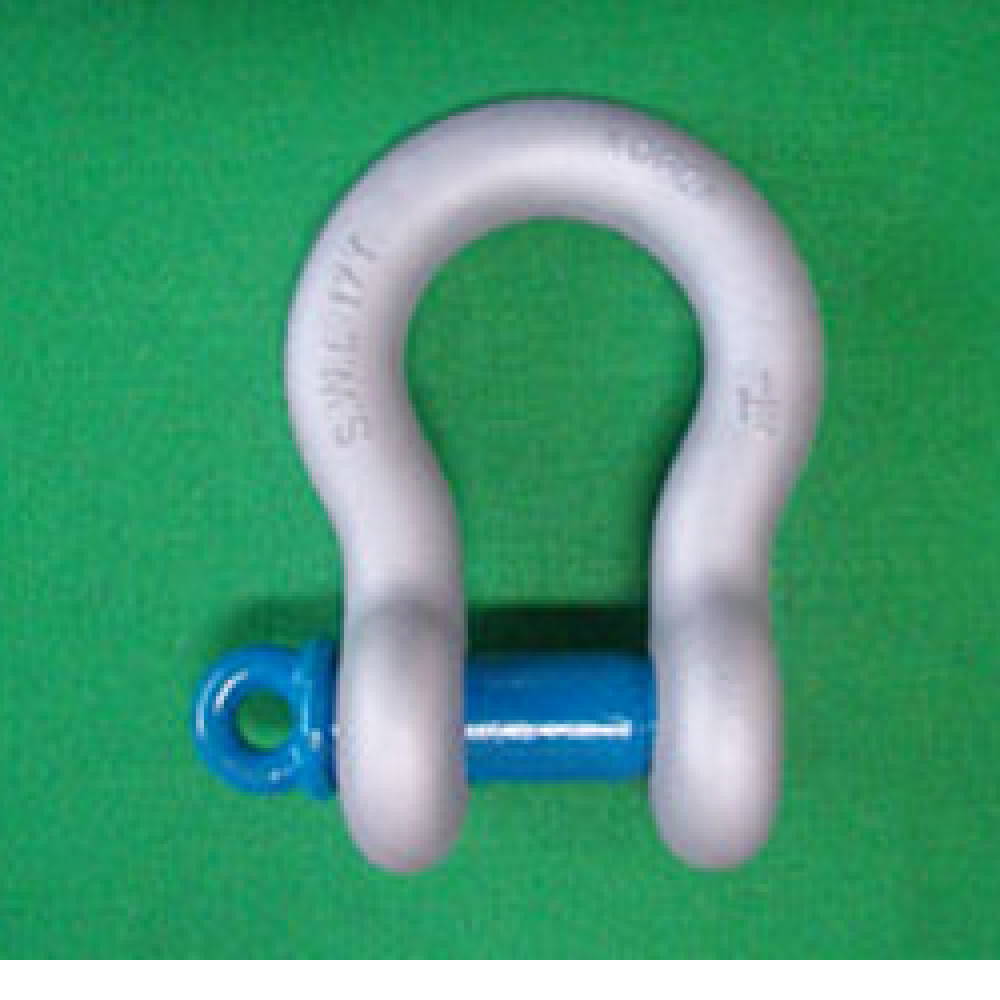

◎ Forged Carbon steel body and Alloy steel pin
◎ Quenching & Tempering
◎ Hot-Dip galvanized Body and Orange painted pin.
◎ Proof load is 2.0 times the S.W.L. and Breaking load is 6.0 times the S.W.L.
◎ Screwpin anchor shackles meet the performance requirements of Federal specification RR-C-271D Type IVA, Grade A, Class 2.
◎ Cast stainless steel(1/4″∼1-1/2″)

	1.General Theory

◎ Never apply more force than the shackle's assigned Safe Working Load(SWL/WLL) rating.
◎ Shackles are used in lifting and static systems as removable links to connect wire rope, chain and other fittings.
◎ Screw pin type shackles are mainly used for non-permanent applications.
◎ Bolt type shackles are preferably used for long term or permanent applications and in circumstances where the pin of the shackle may rotate during loading.
◎ Chain shackles are mainly on one-leg systems and Anchor shackles on multi-leg systems.

	2.Before Using

◎ Must be take a provide personal protection equipment. (Such as footwear, gloves, Crash helmet, etc.)
◎ Working place always shall be the lighting.
◎ Shall be work, before remove dangerous article in the surroundings.

	3.Using

◎ Never make a wrong application of the rule. (Overloading & Improper use can result in injury.)
◎ Over the 20㎏ weight products' using, must be use an appliance tool. (Forklift, crane, hoist, etc.)
◎ Where apply, must locate outside the danger zones. (A falling load may cause serious injury or death.)
◎ Never repair, alter, rework, or reshape a shackle by welding, heating, burning, bending or grinding.

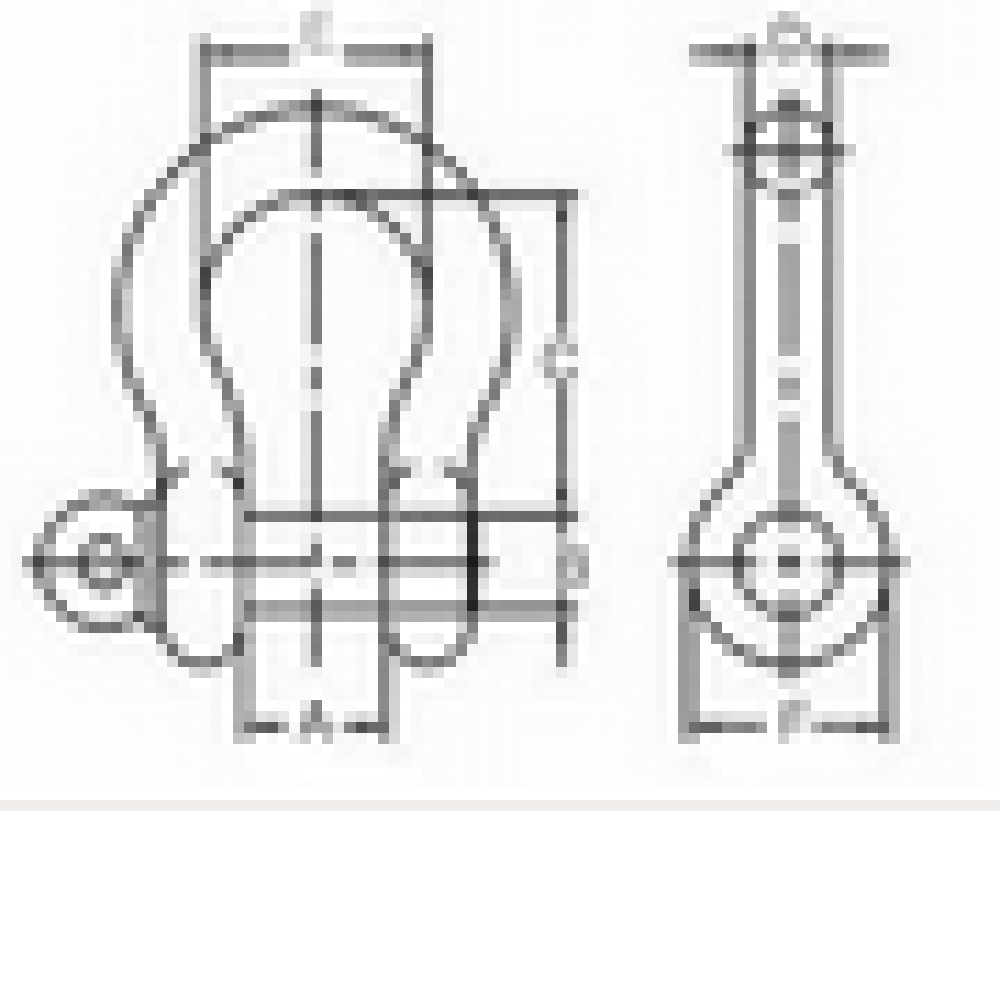

◎ Side-loads should be avoided as the products are not designed for this purpose.(See Figure 1, Table 1)
