FIBERPRO Inc.

Fiber Optic Gyroscope

  • Payment
    T/T
  • MOQ
    1 ea
  • Supply Ability
    9,999,999 ea per One-Time
  • Supply Details

    Negotiable

  • Country of sale
    World Wide, Asia, Americas, Europe, Middle East
  • PRICE
    • FOB

      Depend on quantity

ITEM SPECIFICS

  • Brand
    FIBERPRO Inc.
    Model FG 150
  • origin
    Republic of Korea
  • Size(Capacity)
    165g
  • Features
    1 axis Fiber Optic Gyroscope
  • Dimensions
    Varies by device
  • Gender
    Irrelevant


PRODUCT DESCRIPTION

Fiber Optic Gyroscope
FIBERPRO specializes in delivering cutting-edge solutions for precise motion measurement.
Explore our Fiber Optic Gyroscopes (FOG) for accurate angular motion detection and Inertial Measurement Units (IMU) for
precise measurement of acceleration and angular movement in dynamic environments.

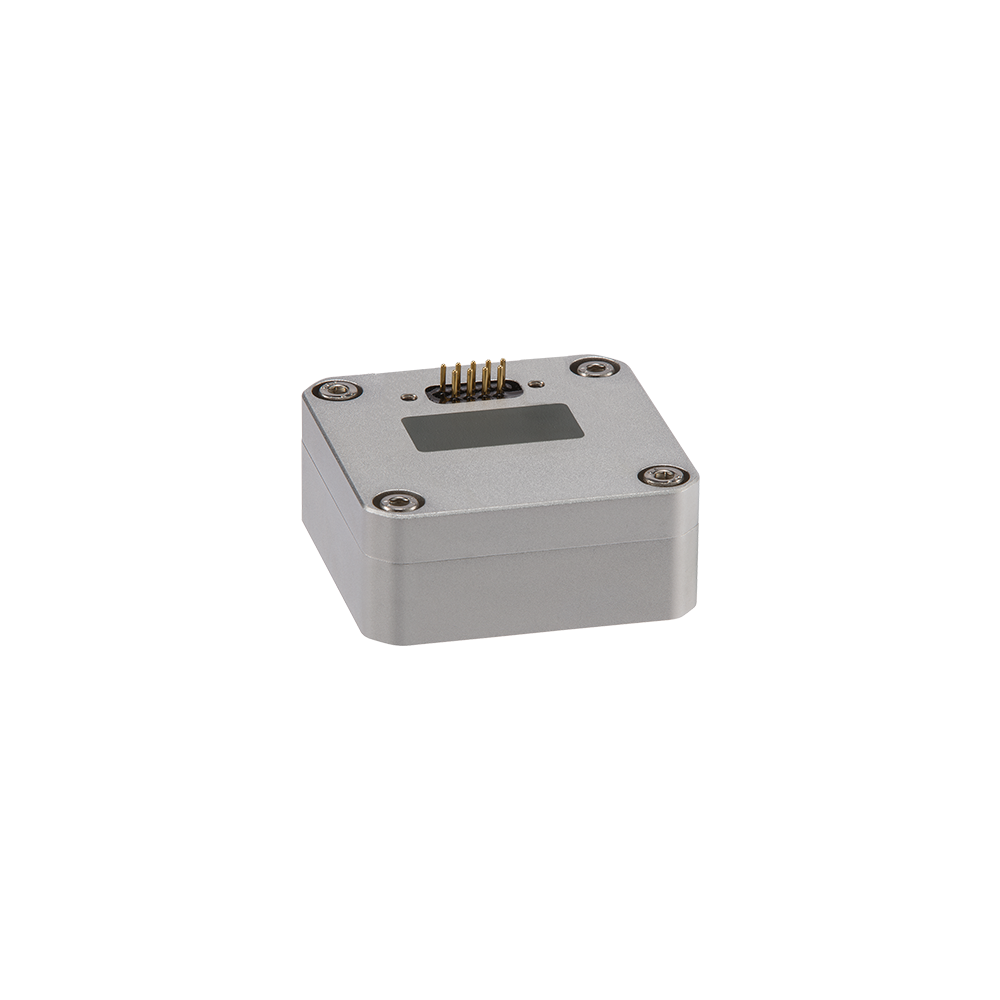

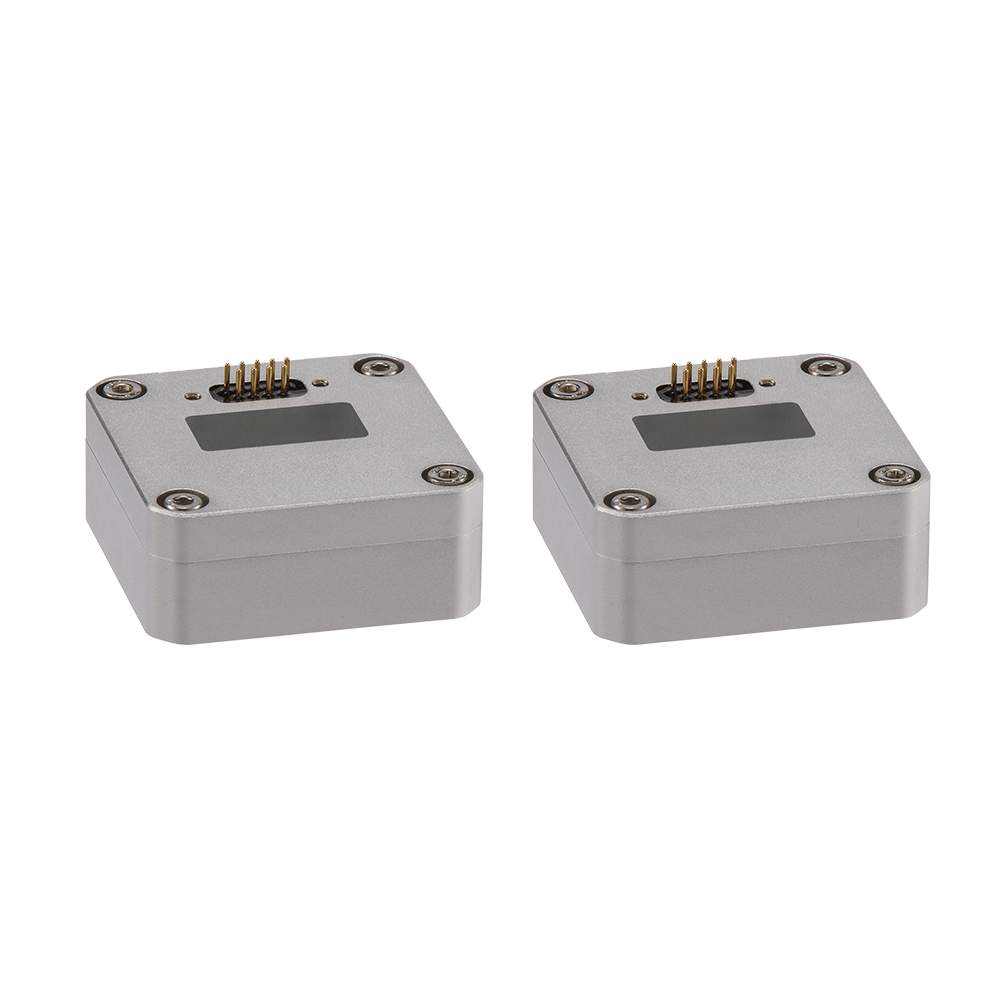

FIBERPRO's FG150 is a single axis fiber optic gyroscope for stabilization and
accurate positioning with application capabilities in a wide variety products such
 as antennas, aircraft cameras, armoured vehicles, auto-guided vehicles (AGV), and more.
Application
 · Armoured Vehicles
 · Aircraft Cameras
 · Auto Guided Vehicle (AGV)
 · AHRS Integration
Specifications
  1 axis Fiber Optic Gyroscope
Bias Repeatability (over temp. range) ≤ 1.0º /hr (1σ, RMS)
Angle Random Walk 0.035º /√hr (typical, 1σ)
Power Consumption 1.3 W @ 25℃ (<2.4 W, @ -40℃)
Input Voltage + 5 V
Weight 165 g (0.36 lbs)
Origin Republic of Korea
Company Overview
FIBERPRO specializes in fiber optic measurement and sensor devices. Since our establishment in 1995,
FIBERPRO has gained recognition for pioneering solutions in the polarization sector. Leveraging innovative concepts and unique technologies,
our products have been instrumental in advancing the global landscape of optical sensors and communications.

We strive to continually develop highly innovative technologies that solve our customers’ problems and meet the ever-changing demands of the fiber optic sensor market.
We are ISO 9001 qualified and pride ourselves on our state-of-the-art R&D capabilities and our extensive experience with in-house systems integration and manufacturing.
Our closed-loop FOG (fiber optic gyro) technology provides significantly enhanced performance over not only open-loop solutions but also other closed-loop FOG IMUs. With one of the best cost-to-performance ratios on the market, it features improved linearity, reduced bias drift and cancelling of phase shift.

The FI 200C is a tactical-grade fiber optic gyro IMU (inertial measurement unit) that provides high-accuracy velocity and angular rate data via a digital output.
Incorporating three axes of fiber optic gyros and three axes of MEMS accelerometers, our closed-loop FOG IMU features a bias repeatability of less than 0.5 degrees/hour over the full temperature range.

- Bias Stability: 0.5 º/hr
- Angle Random Walk: 0.03º/√hr
- Weight: 790g
- ITAR FREE

The environmentally-sealed unit contains no moving parts, ensuring low noise and a long operating lifecycle. Weighing less than 800g, operating on 5V, and consuming just 5W of power, it is ideal for the low SWaP (size, weight and power) requirements of drones and autonomous vehicles.

The ITAR-free FI 200C provides industry-leading levels of accuracy and reliability at an extremely competitive cost, giving it a highly advantageous price-to-performance ratio compared to other tactical-grade IMUs currently available on the market.
